Challenger's 44018

Print

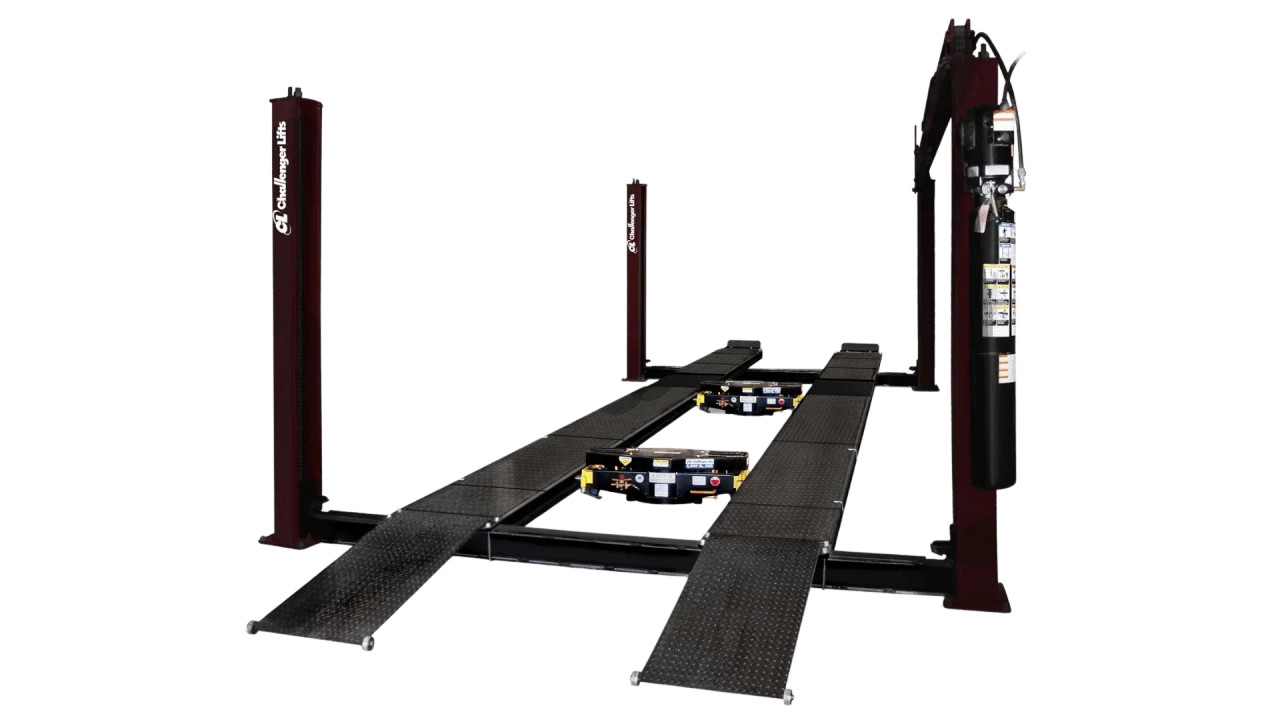

ALI Certified 18,000 lbs Capacity/ Closed Front General Service 4-Post Lift
Description

Challenger’s 18,000 lb. capacity medium-duty 4-post is great for shops servicing light- and medium-duty vehicles. The 18000 features leaf chains and sealed roller bearings. We offer general service or alignment models.

Features

  • 18,000 lb. lift capacity
  • Diamond-plate approach ramps for positive vehicle traction
  • Adjustable runways to accommodate tread widths of a variety of medium-sized transit vehicles (rolling jack application requires fixed runways and runway spacing of 33-15/16″ to 41-11/16″)
  • Approach ramps with heavy-duty steel roller wheels
  • Available with black columns only
  • Built-in runway rail system provides versatility to add convenience options like rolling jacks and oil drain pan (sold separately)

Specifications

 Model Number  44018
 Lift Capacity  18,000 lb.
 A Length Overall  21’ 7”
 B Width Overall  11’ 61/8”
 C Inside Columns  121”
 D Between Columns  204”
 E Height Overall  102  1/2”
 F Height of Runways  7¼”
 G Width of Runways  22”
 H Width Between Runways  36” - 54”
 I Max Wheelbase  194”
 J Rise Height  78¾”
 Min - Max 4 Wheel Align  N/A
 Max 2 Wheel Alignment  N/A
 Motor  3HP
 Voltage  208 - 230v Single   Phase*
 Speed of Rise  60 sec.
 Amps

 30

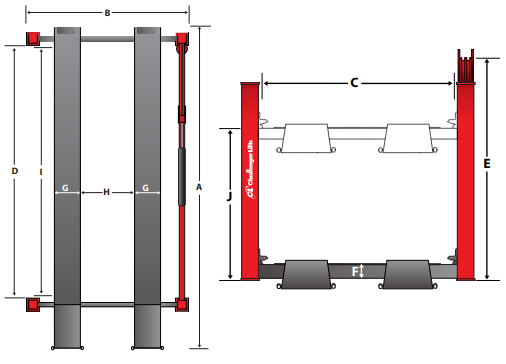

44018 spec
